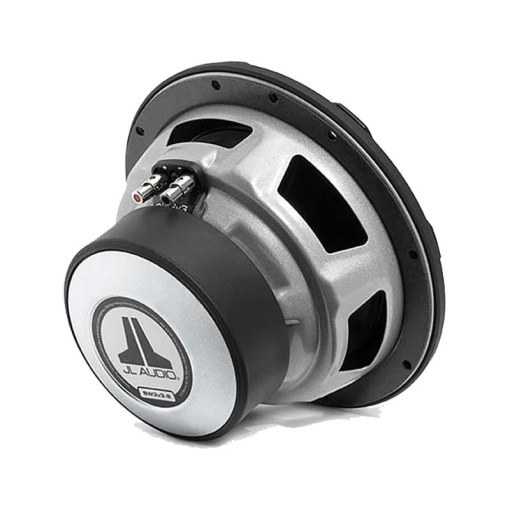

SUBWOOFER JL AUDIO 8W3v3-4
205,79€ IVA Incluido
|
250 W |
|
75- 250 W |
|
4 Ω |
Hay existencias
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter (A) | 8.54 in / 217 mm |
| Mounting Hole Diameter (B) | 7.09 in / 180 mm |
| Bolt Hole Circle (C) | 7.85 in / 199 mm |
| Magnet Diameter (D) | 4.75 in / 121 mm |
| Mounting Depth (E) | 4.63 in / 118 mm |
| Driver Displacement | 0.03 cu ft / 0.85 L |
| Net Weight | 8.2 lb / 3.7 kg |
| Free Air Resonance (Fs) | 35.14 Hz |
| Electrical “Q” (Qes) | 0.501 |
| Mechanical “Q” (Qms) | 7.071 |
| Total Speaker “Q” (Qts) | 0.467 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.375 in / 10.0 mm |
| Reference Efficiency (no) | 0.1300% |
| Efficiency (1 W / 1 m)** | 83.24 dB SPL |
| Effective Piston Area (Sd) | 32.02 sq in / 0.021 sq m |
| DC Resistance (Re) | 3.77 Ω |
| Peso | 5 kg |
|---|
