Name: ETAPA AUDISON AFM1D
Brand: Audison
SKU: AFM1D
Availability: BackOrder

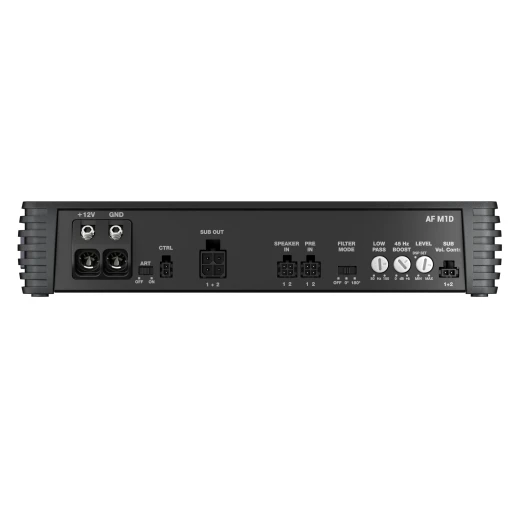

ETAPA AUDISON AFM1D

614,95€ IVA Incluido

AF M1D cuenta con un canal amplificado de alta fidelidad 600W @4Ω*, 1000W @2Ω*, y 1200W @1Ω* con el sonido audiófilo de la última generación de tecnología Audison Clase D.

Datos técnicos del amplificador

Channels	1
Class	D-Class
Hi Level Input	Yes
Low Level Input	Yes
Digital Input	No
Power supply voltage / fuse	11 ÷ 15 VDC
Operating power supply voltage	6.5 ÷ 17.5 VDC
Idling current	1.3 A
Idling current when off	0.005 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power	65 A
Remote OUT	6.5 ÷15 VDC (150 mA)
Remote IN	4 ÷15 VDC (1 mA)
ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)	1.5 VDC

Etapa de amplificación

Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power	0.03%
Bandwidth A	(-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
S/N ratio A	(A weighted @ 1 V): 105 dBA
Damping factor A	(100 Hz, 4Ω, 2 VRMS): 125
Input sensitivity Pre-In	0.6 ÷ 6 VRMS
Input sensitivity Speaker-In	2.2 ÷ 22 VRMS
Total Power RMS	1000 W
Minimum load impedance	1 Ω
Output Power (RMS) @14.4 VDC, 1% THD	1Ch @ 4Ω: 600 W 1Ch @ 2Ω: 1000 W 1Ch @ 1Ω: 1200 W
Adjustable Crossover	Yes

Especificaciones CEA

Output power @ 4Ω, 1% THD+N, 14.4 V	600 W
SN ratio (ref. 1W output)	81 dBA

Entradas

Input Type	Pre-In / Speaker-In
Filter Pass A	Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct.
Inputs/Outputs Phase	(0 ÷ 180 ) deg
Inputs/Outputs Bass Boost	45Hz (adjustable) – (0 ÷ 6) dB
Remote Sub Volume	±12 dB
