Marca:Audison

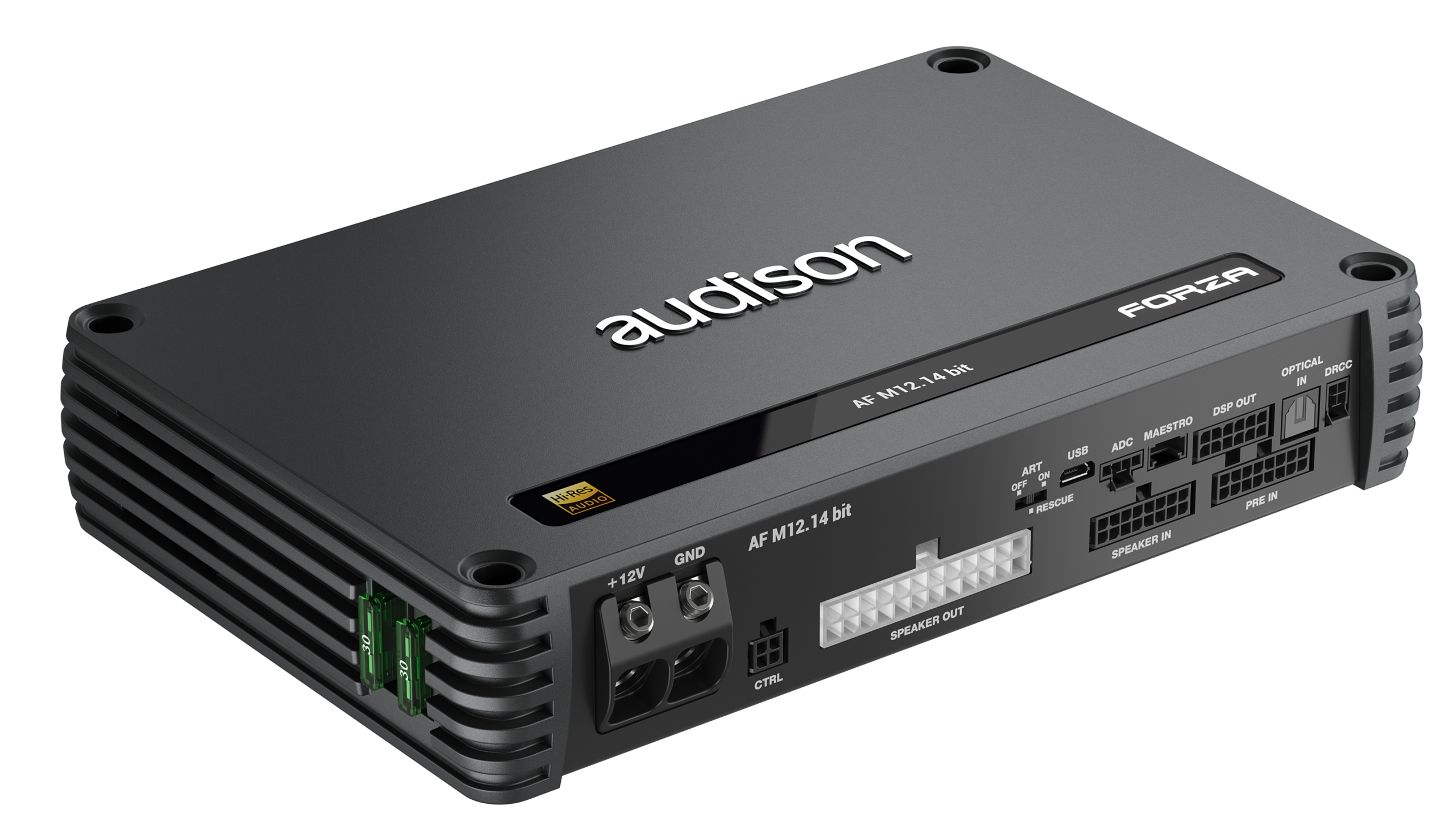

ETAPA AUDISON 12 CANALES CON DSP DE 14 CANALES
1.299,95€ IVA Incluido
AF M12.14 bit cuenta con doce canales amplificados de alta fidelidad 60 x 12 @4Ω*, 90W x 12 @2Ω* con el sonido audiófilo de la última generación de tecnología Audison Clase D.
Datos técnicos del amplificador
| Channels | 12 |
| Class | D-Class |
| Eficiencia | 80% |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 2 x 30A |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1.68 A |
| Standby Current Draw | 1.7 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 45 A |
| Remote IN | 4 ÷15 VDC (1 mA) |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| ART – Automatic Remote Turn on/ off from OUTPUT BTL speakers | 1.5 VDC |
| Efficiency Rated Power | 80% |
Etapa de amplificación
| Distortion – THD @ 1 kHz, 4Ω, 70% Rated Power | 0.03% |
| Bandwidth @ -1,5 dB | 10 Hz ÷ 42 kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 80 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 98 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 1080 W |
| Minimum load impedance | 12Ch: 2Ω | 6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 12 Ch @ 4Ω: 60 W x 12
12 Ch @ 2Ω: 90 W x 12 6 Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6 |
| Adjustable Crossover | Yes |
Especificaciones CEA
| Output power @ 4Ω, 1% THD+N, 14.4 V | 45 W |
| SN ratio (ref. 1W output) | 75.5 dB |
Entradas / Salidas
| Pre-In Inputs | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
| Digital Input | Yes |
| Pre Outputs | 2 |
| Hi Level Inputs | 8 |
| Low Level Inputs | 8 |
| Speaker-In Inputs | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card |
| Sub Out (RCA Pre Out) | 5V RMS |
Procesador digital de señales
| Audio DSP Converter | Dispositivo analógico ADAU1467 procesador de audio para automoción. Procesamiento a 96 kHz. 3 convertidores A/D y D/A ADAU1978 (4 canales) y ADAU1966A (16 canales) de Dispositivos analógicos (24 bits/192 kHz) que proporcionan un rendimiento de muy alto nivel. |
| Filter type | Full / High-Pass / Low-Pass / Band-Pass |
| Filter mode and slope | Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. |
| Crossover frequency | 20 Hz ÷ 20 kHz |
| Phase control | 0° / 180°, All-Pass filters |
| Analog Input Equalizer (20 ÷ 20k Hz) | 12 Biquad + Delay |
| Output Equalizer | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Input Output Real Time Audio Monitor | RTA |
Conexiones de control
| DRC Port | Input for DRC AC remote control (Optional) |
| ADC Port | Manage other Audison devices that support this standard |
| 1 Wire | Customizable functions (+ 12 V activated) |
| 2 Wire | Customizable functions (+ 12 V activated) |
Requisitos generales
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Windows 10, Windows 11 (min. res. 1024 x 768) |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
| Size | 240 x 47 x 156 / 9.44 x 1.85 x 6.14 |
| Weight | 2.04 kg |
